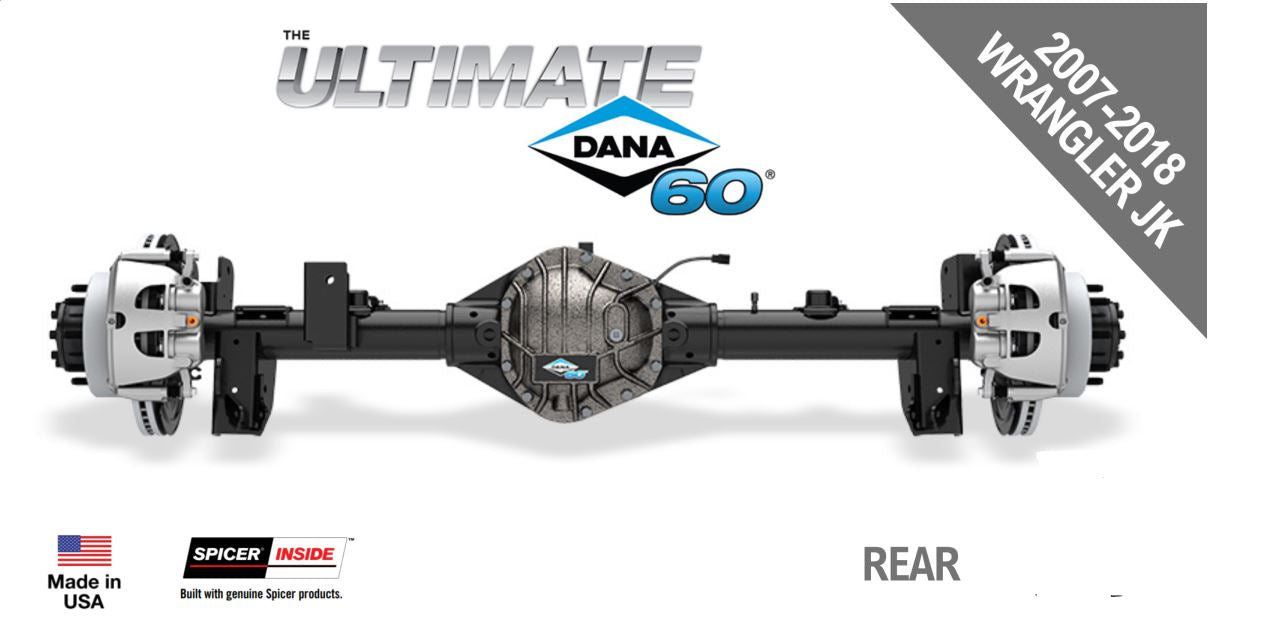

Ultimate Dana 60™ Crate Axle, Full Float, 69" WMS, Fits 2007-2018 Jeep Wrangler JK - Rear Axle - 5.38 Gear Ratio, Eaton ELocker® - 10005942
Ultimate Dana 60™ Crate Axle, Full Float, 69" WMS, Fits 2007-2018 Jeep Wrangler JK - Rear Axle - 5.38 Gear Ratio, Eaton ELocker® - 10005942
Dana
SKU:10005942
Regular price
$8,499.99 USD
Regular price
Sale price
$8,499.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Ultimate Dana 60™ Crate Axle, Full Float, 69" WMS, Fits 2007-2018 Jeep Wrangler JK - Rear Axle - 5.38 Gear Ratio, Eaton ELocker® - 10005942
Description
Engineered to be a direct-fit, bolt-in solution for the Jeep Wrangler JK, Ultimate Dana 60™ axles are built for superior strength inside and out.
The full-float design of the Ultimate Dana 60™ axle means that the vehicle weight is carried by the housing instead of the shaft. So, you can enjoy a greater load-carrying ability wherever your Jeep takes you. The Ultimate Dana 60™ axle features Spicer® 35 spline SAE-4340 nickel chromoly steel axle shafts to help meet the rigors of off-road, providing maximum strength and durability for vehicles with larger tires.
Ultimate Dana 60™ axles are designed to give you an advantage across even the most brutal terrain:
- Spicer® 35 spline SAE-4340 nickel chromoly steel axle shafts
- Axle tubes: 3.5" outside diameter/.370" (front) or .390" (rear) wall thickness
- Spicer® ring and pinion gearing: 10" (256 mm) on front axles and 9.75" (248 mm) on rear
- Genuine “Made in the USA” gearing
- Heavy-duty 8" x 6.5" wheel bolt pattern
- Nodular iron diff cover
- Selectable electronic locking differentials
- Heavy-duty brackets
- Spicer® 1350 strap-style/half-round end yoke
- Upgraded heavy-duty brakes with plug-and-play ABS system
COMPATIBLE WITH APPLICATIONS
Year Range | Make | Model | Submodel | Notes |
---|---|---|---|---|
2007 - 2017 | Jeep | Wrangler | -- | Front,with 5.38 Gear Ratio,with Eaton Electronic Locker,with Ultimate Dana 60 Axle,with Ultimate Dana 60 Crate Axle |
2018 - 2018 | Jeep | Wrangler JK | -- | Front,with 5.38 Gear Ratio,with Eaton Electronic Locker,with Ultimate Dana 60 Axle,with Ultimate Dana 60 Crate Axle |
Details
-
Country of Origin: USA
-
Package Type: Each
-
Inner Axle Shaft Spline Count: 35
-
Wheel Bolt Pattern: 8 X 6.5
-
Vehicle Location: Rear
-
Traction Device: Eaton Electronic Locker
-
Package Quantity: 1 Outer
-
Axle Spline Count: 35
-
Mounting Bracket Included: Y
-
Axle Model: DANA 60
-
Hub Surface to Hub Surface(IN): 69.000
-
Gear Ratio: 5.38
-
End Yoke Style: Half Round
-
Drive Shaft U Joint Series: 1350
-
Brakes Included: Y
-
Axle Shaft U Joint Series: SPL70
-
Axle Shaft Material: Chromoly
-
