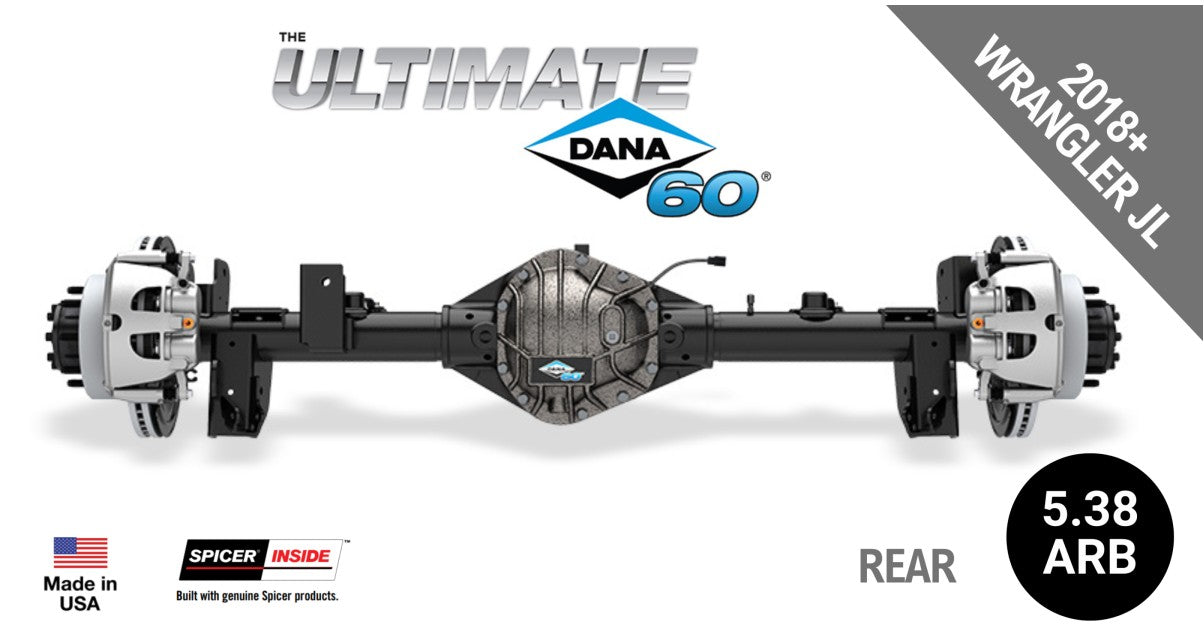

Ultimate Dana 60™ Crate Axle, Fits 2018+ Jeep Wrangler JL - Rear Axle - 5.38 Gear Ratio, ARB Air Locking Differential - 10088918

Ultimate Dana 60™ Crate Axle, Fits 2018+ Jeep Wrangler JL - Rear Axle - 5.38 Gear Ratio, ARB Air Locking Differential - 10088918

Dana

SKU:10088918

Regular price $8,799.99 USD
Regular price Sale price $8,799.99 USD
Sale Sold out
Shipping calculated at checkout.

Description

Engineered to be a direct-fit, bolt-in solution for the Jeep Wrangler JK, Ultimate Dana 60™ axles are built for superior strength inside and out.

The full-float design of the Ultimate Dana 60™ axle means that the vehicle weight is carried by the housing instead of the shaft. So, you can enjoy a greater load-carrying ability wherever your Jeep takes you. The Ultimate Dana 60™ axle features Spicer® 35 spline SAE-4340 nickel chromoly steel axle shafts to help meet the rigors of off-road, providing maximum strength and durability for vehicles with larger tires.

Ultimate Dana 60™ axles are designed to give you an advantage across even the most brutal terrain:

  • Spicer® 35 spline SAE-4340 nickel chromoly steel axle shafts
  • Axle tubes: 3.5" outside diameter/.370" (front) or .390" (rear) wall thickness
  • Spicer® ring and pinion gearing: 10" (256 mm) on front axles and 9.75" (248 mm) on rear
  • Genuine “Made in the USA” gearing
  • Heavy-duty 8" x 6.5" wheel bolt pattern
  • Nodular iron diff cover
  • Selectable electronic locking differentials
  • Heavy-duty brackets
  • Spicer® 1350 strap-style/half-round end yoke
  • Upgraded heavy-duty brakes with plug-and-play ABS system

UD60 Call Outs



COMPATIBLE WITH APPLICATIONS

Year Range Make Model Submodel Notes
2018 - 2022 Jeep Wrangler -- Rear,with 5.38 Gear Ratio,with ARB Air Locker,with Ultimate Dana 60 Axle,with Ultimate Dana 60 Crate Axle



Details
Country of Origin: USA

Package Type: Each Inner Axle Shaft Spline Count: 35

Wheel Bolt Pattern: 8 X 6.5

Weight (LBS): 430

Vehicle Location: Rear

Traction Device: ARB

Air Locker Package Quantity: 1

Outer Axle Spline Count: 35

Mounting Bracket Included: Y

Axle Model: DANA 60

Hub Surface to Hub Surface(IN): 69.000

Gear Ratio: 5.38

End Yoke Style: Half Round Drive Shaft

U Joint Series: 1350

Brakes Included: Y

Axle Shaft U Joint Series: SPL70

Axle Shaft Material: Chromoly

Availability Remarks: Limited Supply
