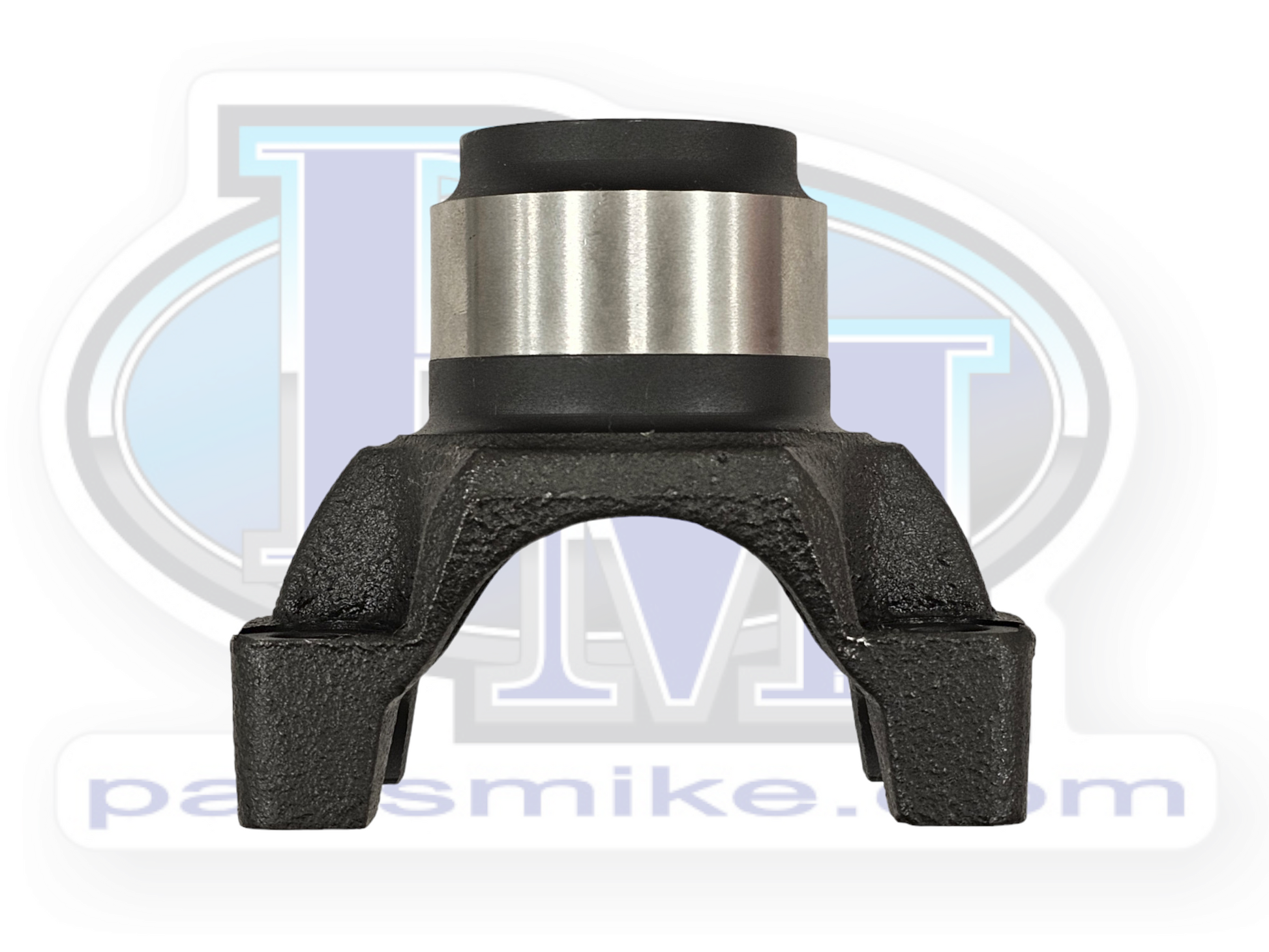

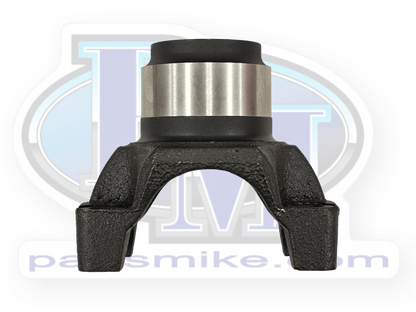

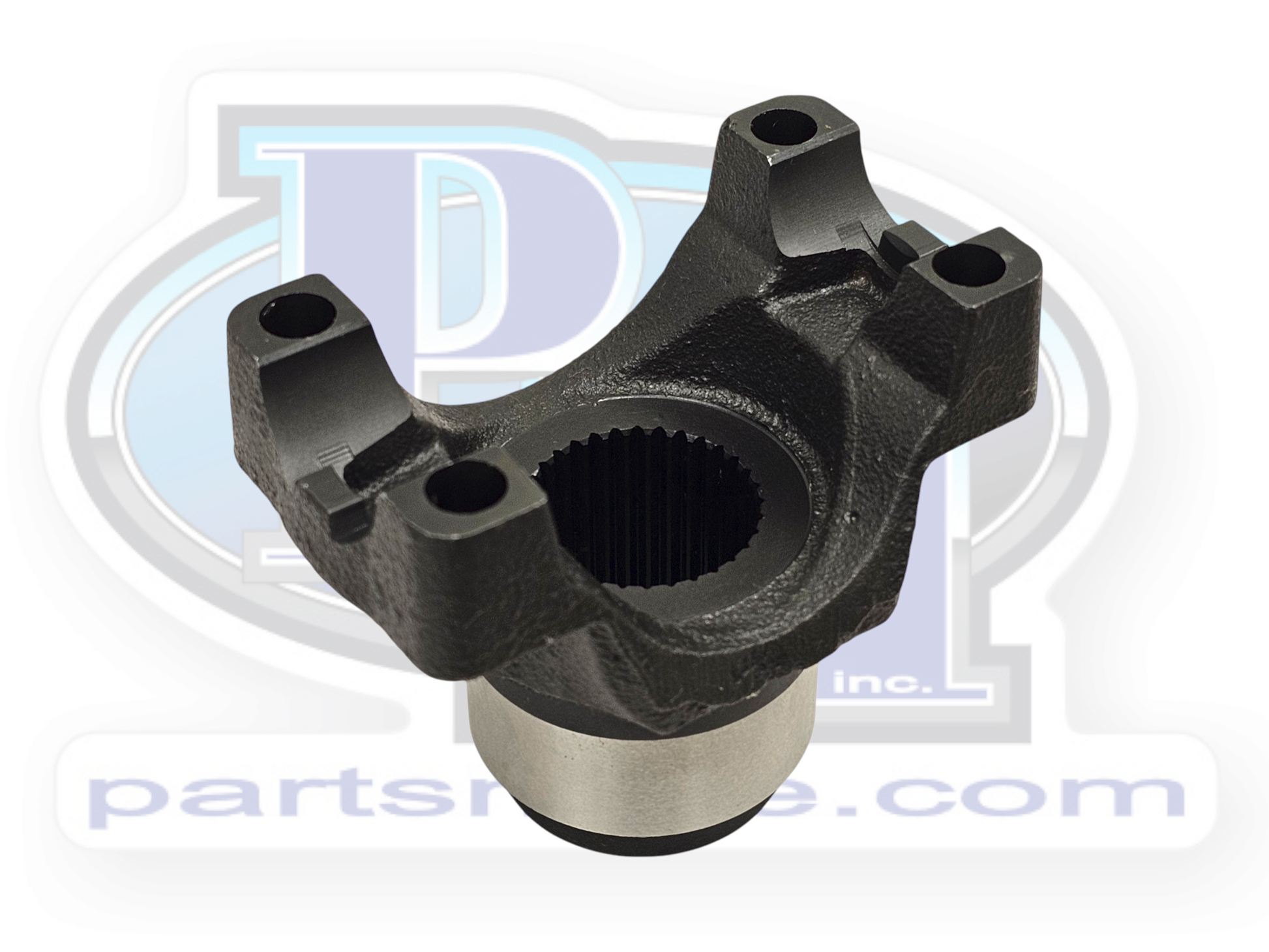

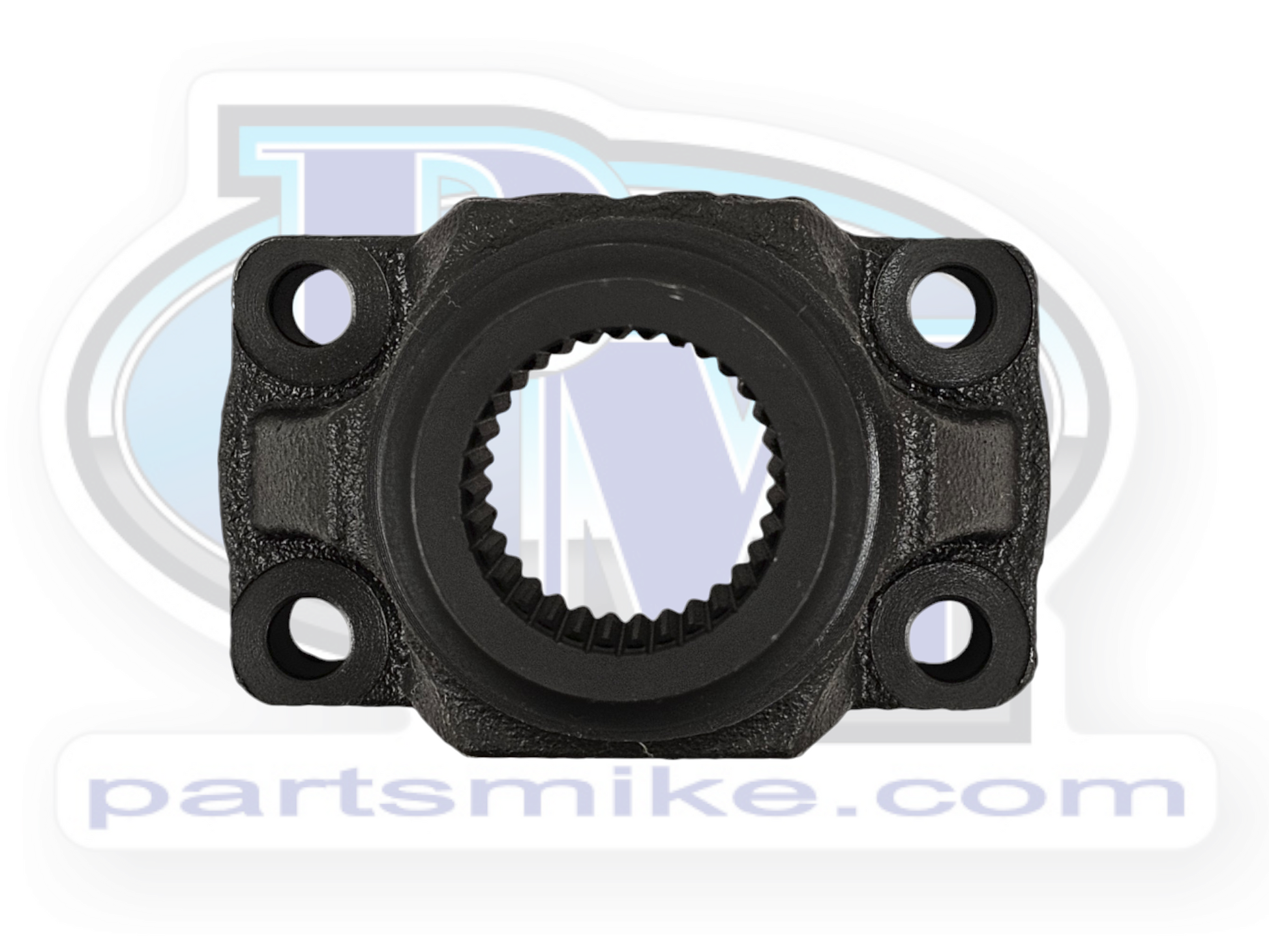

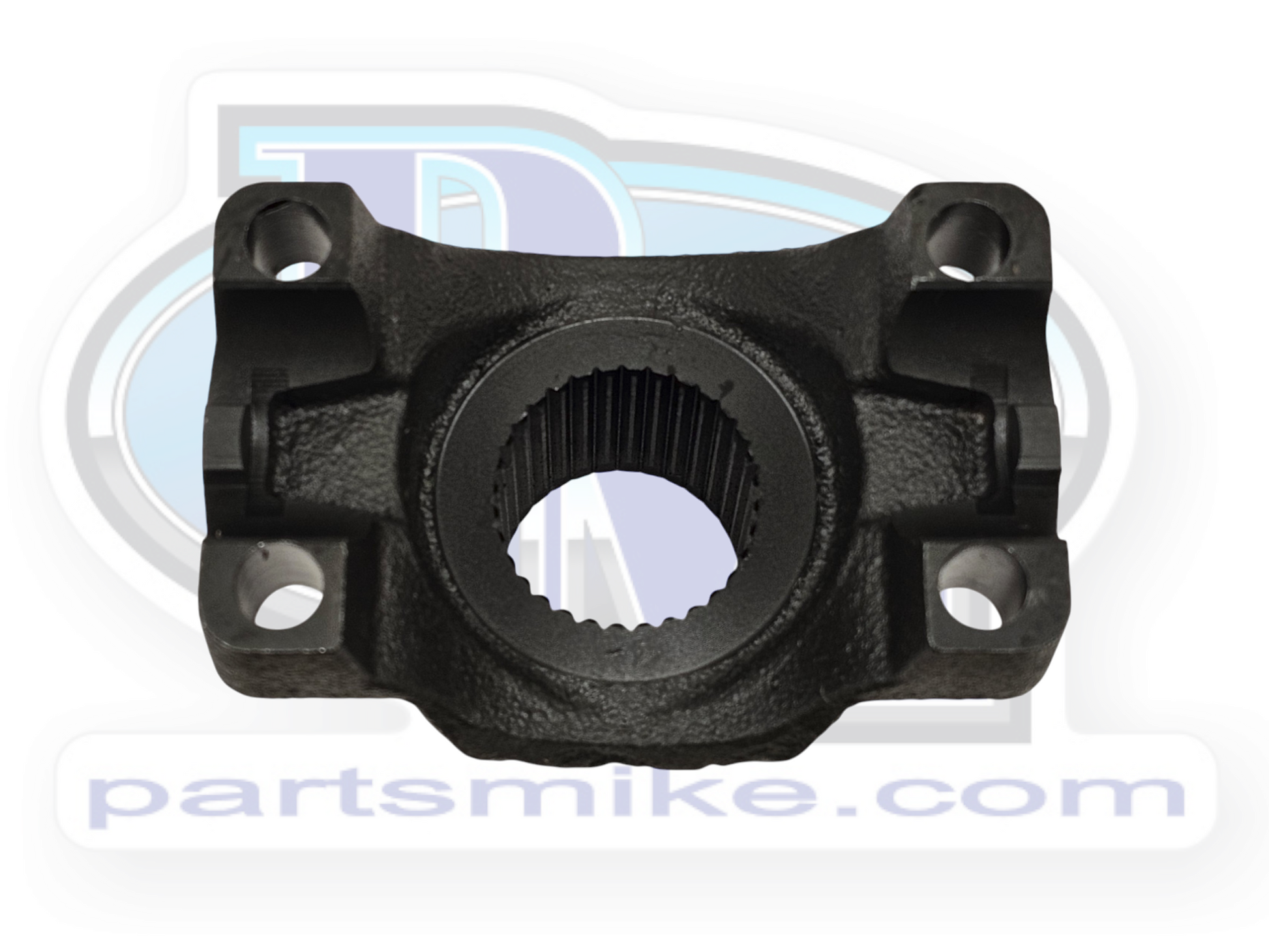

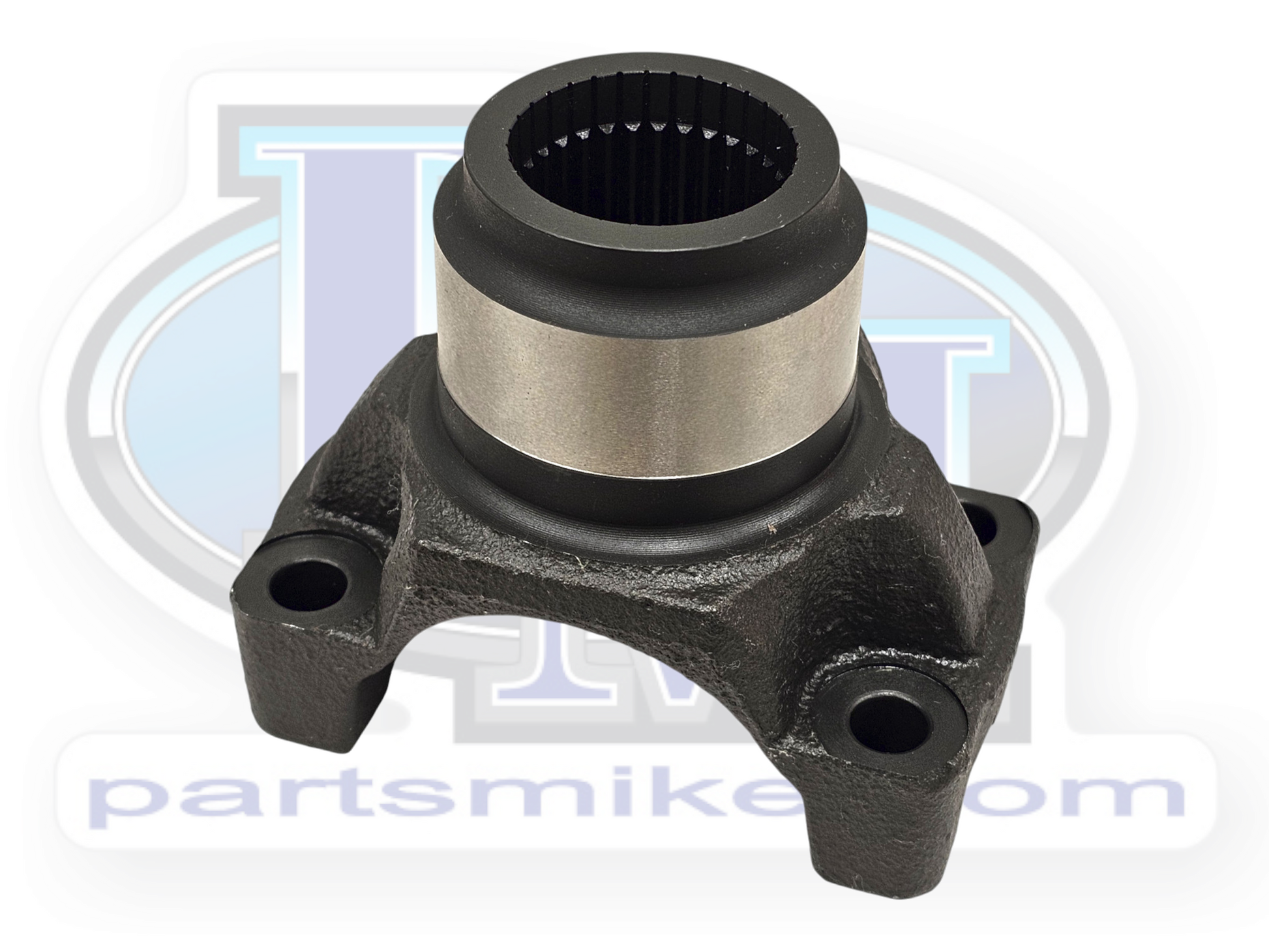

Yoke, 32 Spline, 1350, U-Bolt, Non-CV, (PM3-4-6211, 3-4-6211)

1350, 32 spline, U-bolt yoke.  This yoke is typically found or retrofitted onto Atlas and 205 transfer cases.  It fits most Advance Adapters outputs (NP231 SYE, D18HD, D20HD, D300HD).  It uses U-bolts to fasten the u-joints instead of straps.

WARNING:  Count the splines on your transfer case!  Not all 205s came with 32 splines!

If you're swapping off a yoke with a smaller seal OD, check the OD of the seal below.  It will save you some time at the parts store explaining the Frankenstein situation ; )


Dimensions (Reference Image)

A: Seal Surface: 2.127"

B: Through Hole: 2.000"

C: Overall Length: 3.525"

D: U-Joint Width: 3.623"

Major Spline Diameter: 1.390"

Counter Bore: .261"

Splines: 32

Specifications:

Yoke

• U-joint size:  1350, U-bolt style


U-bolts (not included)

• Diameter and pitch:  3/8"-24

Spline seal

• ID:  0.90"

Seal (not included)

• OD:  3"
• ID:  2.125"
• Thickness:  0.375"

U-joint (not included)

• Brand:  Spicer
• Series:  1350, 5-1350X lifetime (non-greaseable) or 5-178X greaseable

For the new and improved design order PM3112-5015.

Qty. 1
