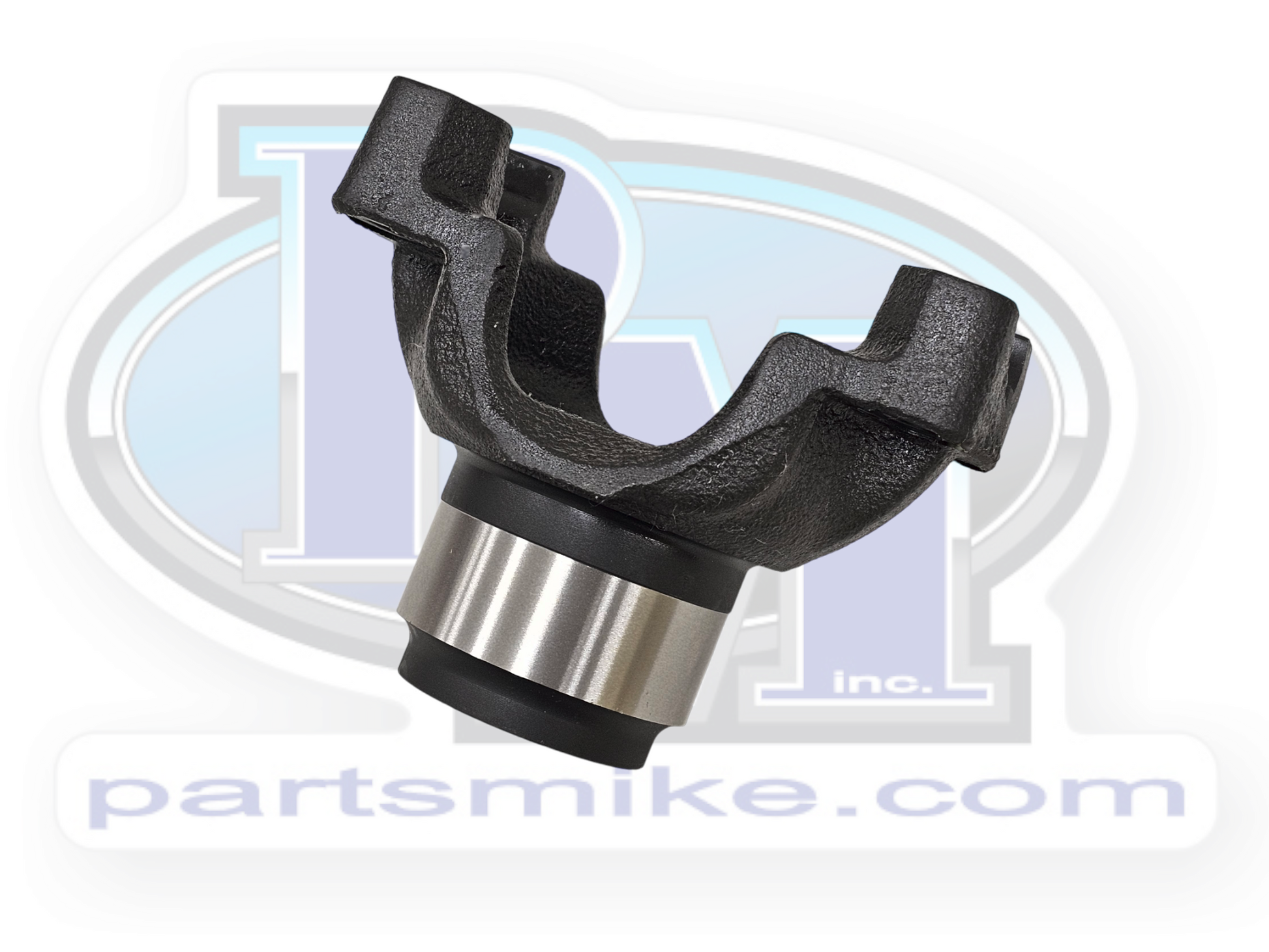

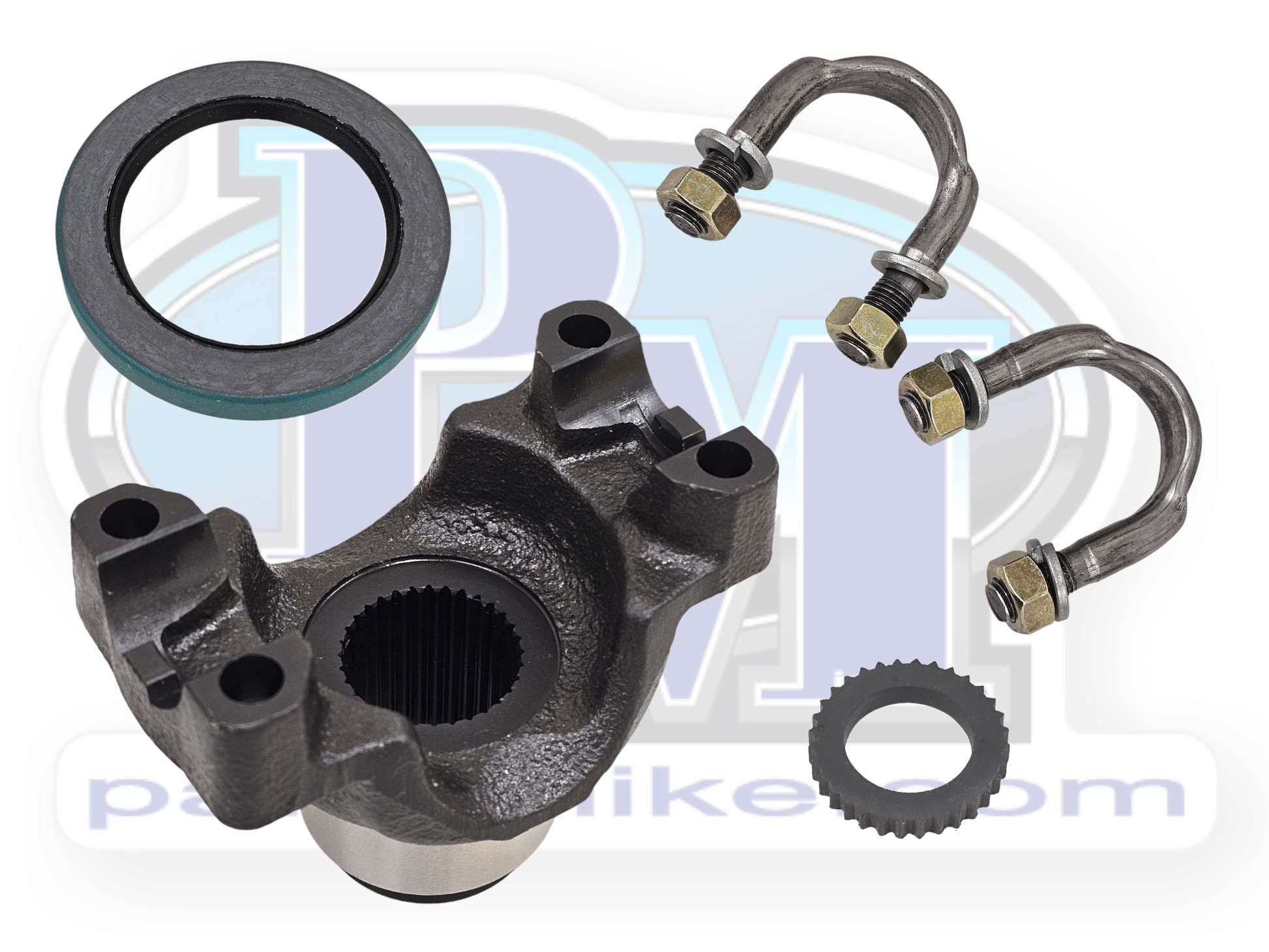

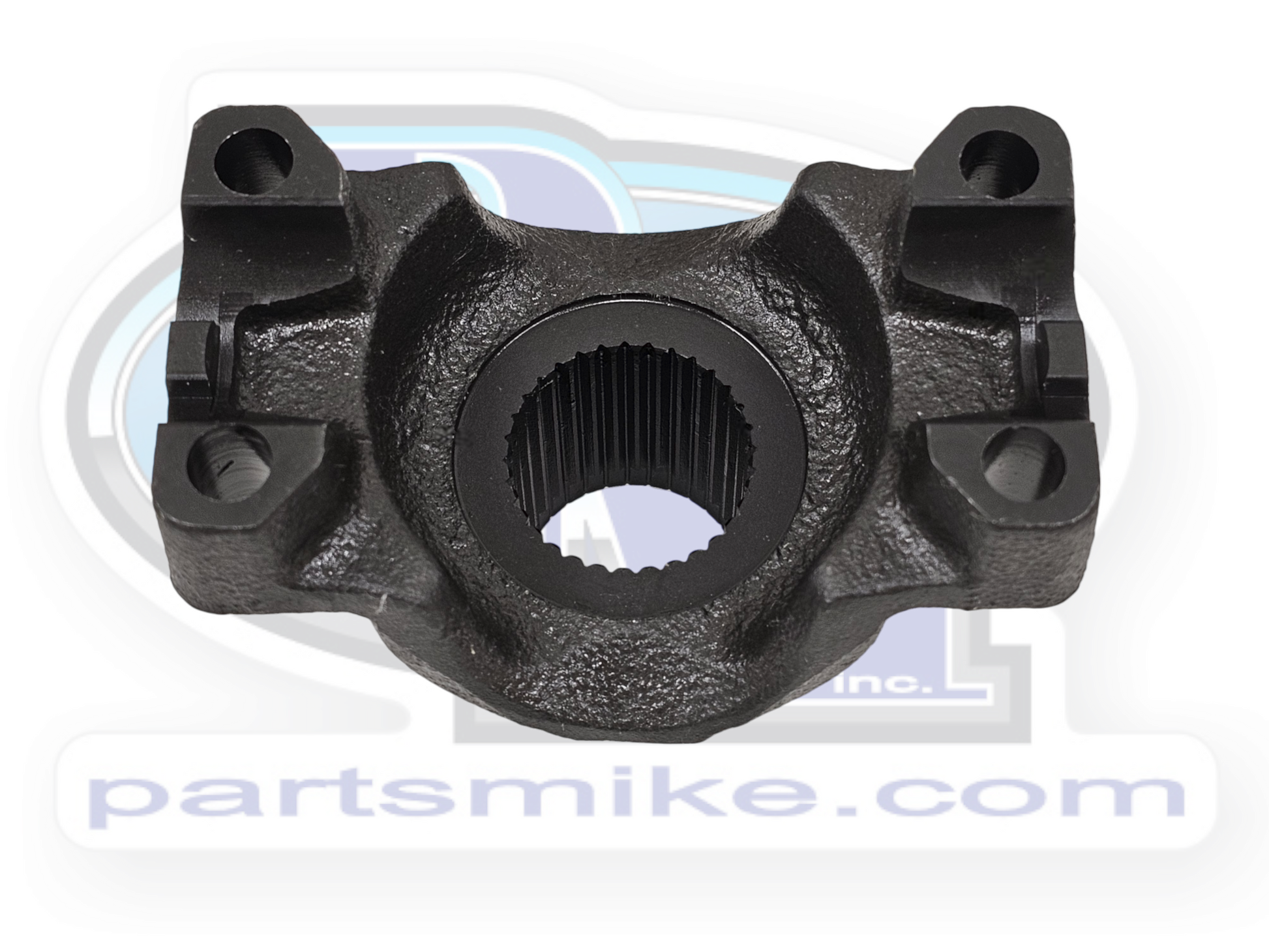

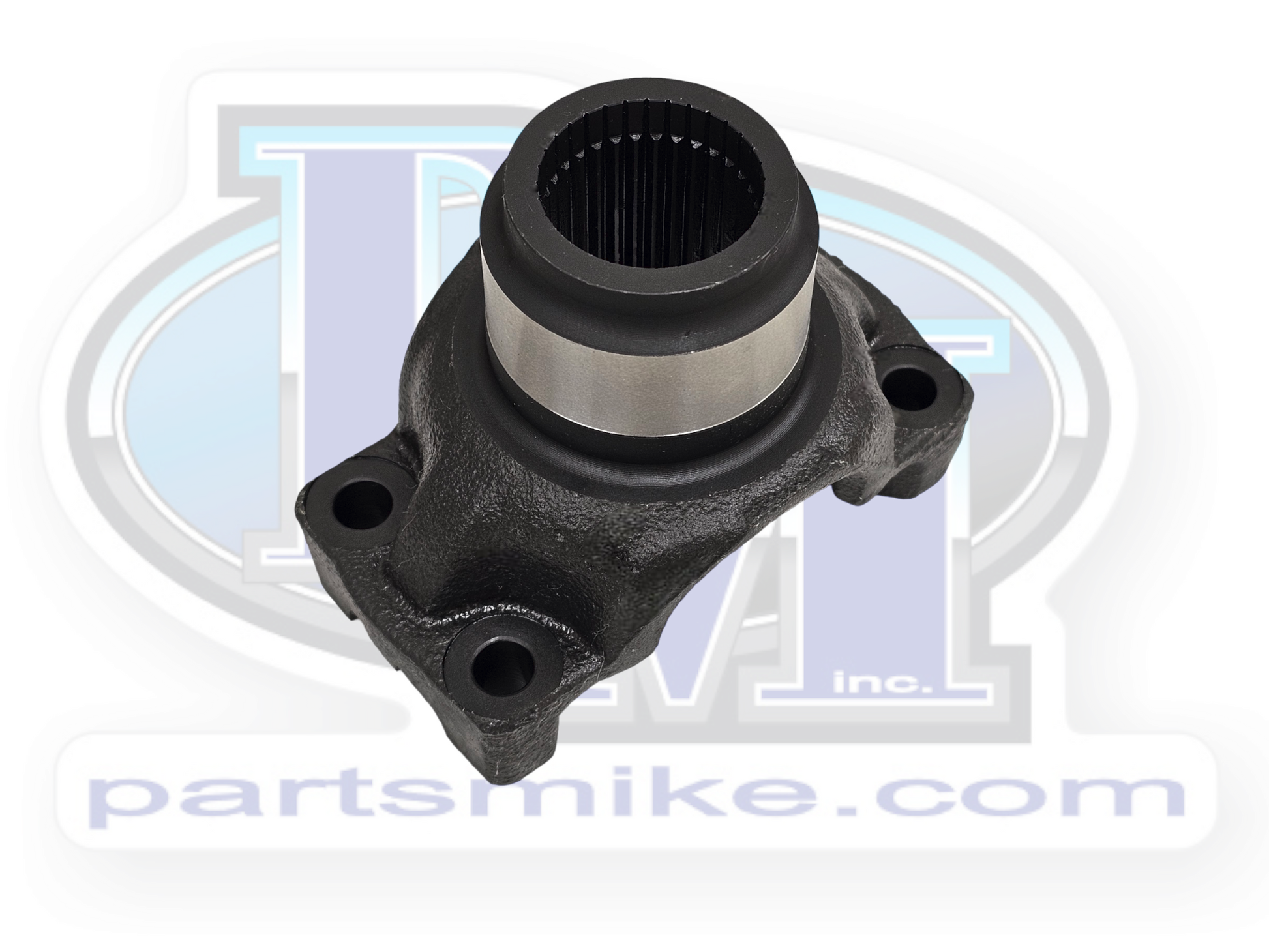

32 Spline, 1410, Cast, End Yoke Kit, U-Bolt Style, Non CV, Includes Seals and U-Bolts, (PM3-4-10951-2GK)

You've selected the Atlas kit with seals and U-bolts

1410, 32 spline, U-bolt yoke.  This kit fits Advance Adapters outputs for the Atlas, NP231 SYE, D18HD, D20HD, D300HD.  It uses U-bolts to fasten the u-joints instead of straps.

WARNING:  Count the splines on your transfer case!  This yoke is for 32 splines!

Dimensions (Reference Image)

A: Seal Surface: 2.125"

B: Through Hole:

C: Overall Length:

D: U-Joint Width: 1.330"

Major Spline Diameter:

Counter Bore:

Splines: 32

Specifications:

Yoke

• U-joint size:  1410, U-bolt style


U-bolts

• U-joint size:  1410

• Diameter and pitch:  3/8"-24

Spline seal

• ID:  0.90"

Nut

• Size:  7/8"-20
• Wrench size:  1-1/8"

Seal

• OD:  3"
• ID:  2.125"
• Thickness:  0.375"

U-joint

• Brand:  Spicer
• Series:  1410, choice of 5-1410X lifetime series (non-greaseable) u-joint or 5-160X greaseable U-Joint

Qty. 1
